# RelSpec

[![Release](https://img.shields.io/gitea/v/release/wdevs/relspecgo?gitea_url=https://git.warky.dev&label=release)](https://git.warky.dev/wdevs/relspecgo/releases/latest)
[![CI](https://git.warky.dev/wdevs/relspecgo/actions/workflows/ci.yml/badge.svg)](https://git.warky.dev/wdevs/relspecgo/actions/workflows/ci.yml)
[![Integration Tests](https://git.warky.dev/wdevs/relspecgo/actions/workflows/integration-tests.yml/badge.svg)](https://git.warky.dev/wdevs/relspecgo/actions/workflows/integration-tests.yml)
[![Go Version](https://img.shields.io/badge/go-1.24.0-blue.svg)](https://go.dev/dl/)
[![License](https://img.shields.io/badge/license-Apache%202.0-blue.svg)](LICENSE)

> Bidirectional database schema conversion, validation, and templating tool.

![RelSpec](./assets/image/relspec1_512.jpg)

## Install

```bash
go install -v git.warky.dev/wdevs/relspecgo/cmd/relspec@latest
```

## Supported Formats

| Direction | Formats |
|-----------|---------|
| **Readers** | `bun` `dbml` `dctx` `drawdb` `drizzle` `gorm` `graphql` `json` `mssql` `pgsql` `prisma` `sqldir` `sqlite` `typeorm` `yaml` |
| **Writers** | `bun` `dbml` `dctx` `drawdb` `drizzle` `gorm` `graphql` `json` `mssql` `pgsql` `prisma` `sqlexec` `sqlite` `template` `typeorm` `yaml` |

See [docs/FORMAT_EXAMPLES.md](docs/FORMAT_EXAMPLES.md) for usage examples covering every format.

## Commands

### `convert` — Schema conversion

```bash
# PostgreSQL → GORM models
relspec convert --from pgsql --from-conn "postgres://user:pass@localhost/mydb" \
                --to gorm --to-path models/ --package models

# DBML → PostgreSQL DDL
relspec convert --from dbml --from-path schema.dbml --to pgsql --to-path schema.sql

# PostgreSQL → SQLite (auto flattens schemas)
relspec convert --from pgsql --from-conn "postgres://..." --to sqlite --to-path schema.sql

# Multiple input files merged
relspec convert --from json --from-list "a.json,b.json" --to yaml --to-path merged.yaml

# Watch mode: regenerate whenever the source file(s) change (Ctrl-C to stop)
relspec convert --from dbml --from-path schema.dbml --to gorm --to-path models/ --package models --watch
```

`--watch` works with `--from-path` and `--from-list` (not live database
connections or `--dry-run`). Source files are polled every `--watch-interval`
(default 500ms), a directory source is watched recursively, and the output path
is ignored so generating into the source tree does not loop. Conversion errors
are printed and watching continues.

PostgreSQL connections opened by relspec set `application_name` by default to
`relspecgo/<version>` (with component suffixes internally, e.g. readers/writers).
If you need a custom value, provide `application_name` explicitly in the connection
string query parameters.

### `merge` — Additive schema merge (never modifies existing items)

```bash
# Merge two JSON schemas
relspec merge --target json --target-path base.json \
              --source json --source-path additions.json \
              --output json --output-path merged.json

# Merge PostgreSQL into JSON, skipping tables
relspec merge --target json --target-path current.json \
              --source pgsql --source-conn "postgres://user:pass@localhost/db" \
              --output json --output-path updated.json \
              --skip-tables "audit_log,temp_tables"
```

Skip flags: `--skip-relations` `--skip-views` `--skip-domains` `--skip-enums` `--skip-sequences`

### `inspect` — Schema validation / linting

```bash
# Validate PostgreSQL database
relspec inspect --from pgsql --from-conn "postgres://user:pass@localhost/mydb"

# Validate DBML with custom rules
relspec inspect --from dbml --from-path schema.dbml --rules .relspec-rules.yaml

# JSON report output
relspec inspect --from json --from-path db.json --output-format json --output report.json

# Filter to specific schema
relspec inspect --from pgsql --from-conn "..." --schema public
```

Rules: naming conventions, PK/FK standards, missing indexes, reserved keywords, circular dependencies.

### `diff` — Schema comparison

```bash
relspec diff --from pgsql --from-conn "postgres://localhost/db1" \
             --to pgsql --to-conn "postgres://localhost/db2"
```

### `templ` — Custom template rendering

```bash
# Render database schema to Markdown docs
relspec templ --from pgsql --from-conn "postgres://user:pass@localhost/db" \
              --template docs.tmpl --output schema-docs.md

# One TypeScript file per table
relspec templ --from dbml --from-path schema.dbml \
              --template ts-model.tmpl --mode table \
              --output ./models/ --filename-pattern "{{.Name | toCamelCase}}.ts"
```

Modes: `database` (default) · `schema` · `table` · `script`

Template functions: string utils (`toCamelCase`, `toSnakeCase`, `pluralize`, …), type converters (`sqlToGo`, `sqlToTypeScript`, …), filters, loop helpers, safe access.

### `job` — Declarative job files

Run named jobs from a `relspec.yml` manifest instead of repeating long command lines.

```bash
# List jobs discovered in ./relspec.yml and ./relspec.<name>.yml (deterministic)
relspec job list

# Validate and print the plan without running anything
relspec job run build-schema --plan

# Run a job (and its declared dependencies)
relspec job run build-schema
```

```yaml
# relspec.yml
version: 1
jobs:
  build-schema:
    command: convert            # closed allow-list: convert | merge | split | scripts-list | scripts-exec | templ | inspect | diff
    description: Merge the DBML sources and emit PostgreSQL DDL
    inputs:
      - path: schema/core.dbml
        format: dbml
      - path: schema/tenant.dbml
        format: dbml
    output:
      format: pgsql
      path: build/schema.sql
      overwrite: true
    options:
      flatten_schema: false
    logfile: .relspec/log/build-schema.log
```

The job system is **not** a shell: `command` is a fixed enum, every path is
resolved relative to the job file and may not escape it, and remote database
credentials are referenced by environment-variable name (`conn_env:`) and
redacted from logs. The whole plan — unknown commands/formats, duplicate job
names, missing inputs, path traversal, dependency cycles — is validated before
any job runs. Path-like fields also support `${NAME}` environment-variable
references, which are expanded and safety-checked during pre-flight. See
[docs/JOB_FILES.md](docs/JOB_FILES.md).

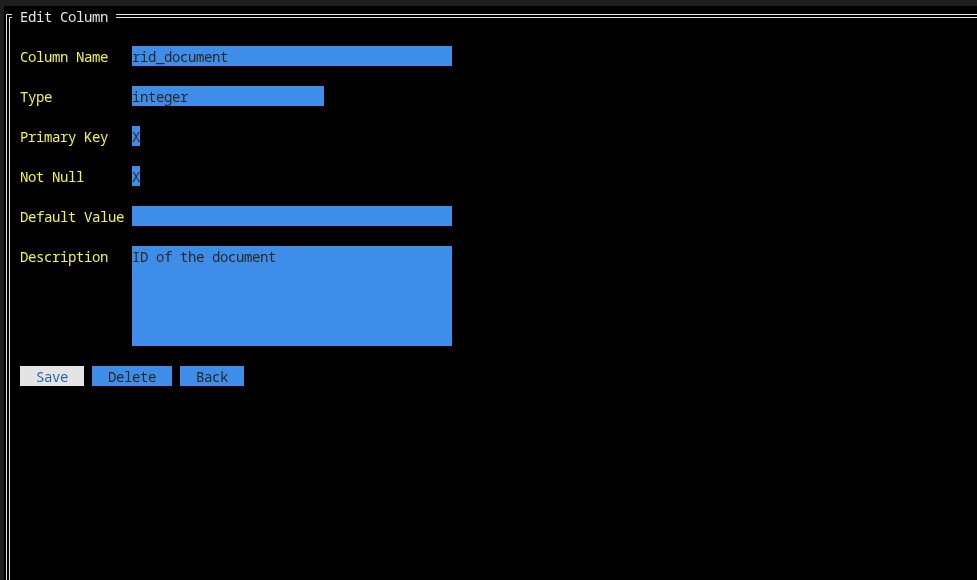

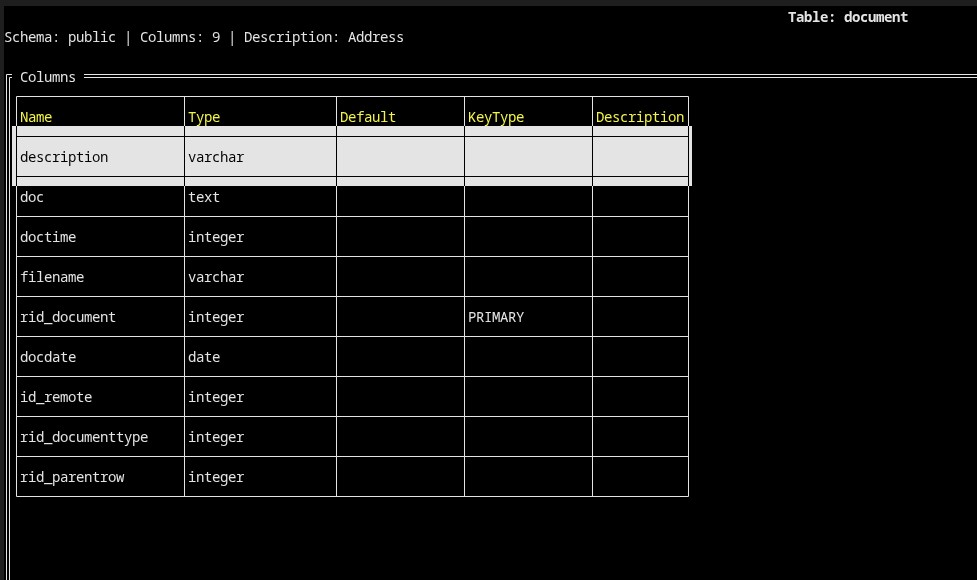

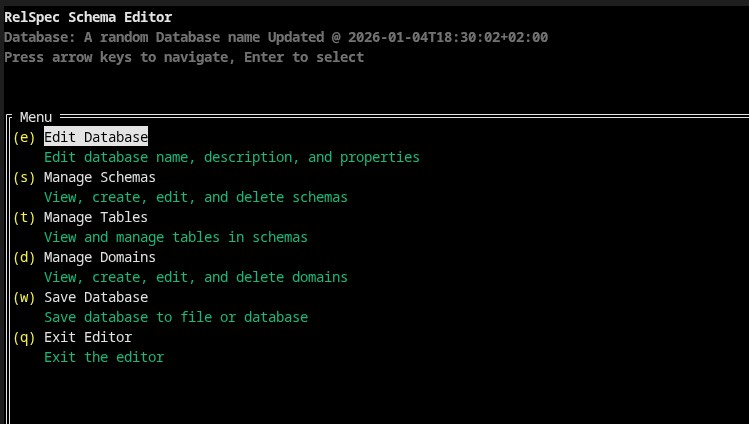

### `edit` — Interactive TUI editor

```bash
# Edit DBML schema interactively
relspec edit --from dbml --from-path schema.dbml --to dbml --to-path schema.dbml

# Edit live PostgreSQL database
relspec edit --from pgsql --from-conn "postgres://user:pass@localhost/mydb" \
             --to pgsql --to-conn "postgres://user:pass@localhost/mydb"
```

<p align="center">
<img src="./assets/image/screenshots/main_screen.jpg">
</p>
<p align="center">
<img src="./assets/image/screenshots/table_view.jpg">
</p>
<p align="center">
<img src="./assets/image/screenshots/edit_column.jpg">
</p>

## Development

**Prerequisites:** Go 1.24.0+

```bash
make build     # → build/relspec
make test      # race detection + coverage
make lint      # requires golangci-lint
make coverage  # → coverage.html
make install   # → $GOPATH/bin
```

## Project Structure

```
cmd/relspec/          CLI commands
pkg/readers/          Input format readers
pkg/writers/          Output format writers
pkg/inspector/        Schema validation
pkg/diff/             Schema comparison
pkg/merge/            Schema merging
pkg/models/           Internal data models
pkg/transform/        Transformation logic
pkg/pgsql/            PostgreSQL utilities
pkg/sqltypes/         Nullable SQL types for generated/hand-written models (see below)
```

## Nullable Types (`pkg/sqltypes`)

The `bun` and `gorm` writers can generate model structs using
[`pkg/sqltypes`](./pkg/sqltypes/README.md) — nullable types (`SqlString`,
`SqlInt32`, `SqlTimeStamp`, `SqlStringArray`, …) that implement
`database/sql.Scanner`, `driver.Valuer`, and JSON/YAML/XML marshalling in one
type, selected via `--types sqltypes`. See the
[`pkg/sqltypes` README](./pkg/sqltypes/README.md) for the full type
reference, or the [`bun`](./pkg/writers/bun/README.md) /
[`gorm`](./pkg/writers/gorm/README.md) writer docs for the `--types` flag
(`sqltypes`, `stdlib`, or `baselib`). PostgreSQL array columns are the one
exception: the `bun` writer always generates native Go slices (`[]string`,
`[]int32`, …) with an explicit `array` bun tag, regardless of `--types` —
see [`bun`'s `--array-nullable`](./pkg/writers/bun/README.md#nullablearrays)
flag for nullable-array handling. The `SqlXxxArray` wrapper types remain
available in `pkg/sqltypes` and are still used by the `gorm` writer.

#### Custom type mapping

Override the built-in SQL → Go mapping of the `bun` and `gorm` writers with the
repeatable `--type-map sqltype=gotype` flag:

```bash
relspec convert --from pgsql --from-conn "$DSN" --to gorm --to-path models.go \
  --type-map uuid=string --type-map jsonb=json.RawMessage
```

SQL type names are matched case-insensitively on the base type (modifiers such
as `(10,2)` are ignored; aliases like `int4` resolve to `integer`). NOT NULL
columns use the Go type verbatim, nullable columns get a `*` prefix (unless the
type is already a pointer, slice, map or `any`), and arrays become `[]gotype`.
Unmapped types keep their defaults. The flag does not add imports: use types
that need none, or add the import afterwards (e.g. with `goimports`).

## Contributing

1. Register or sign in with GitHub at [git.warky.dev](https://git.warky.dev)
2. Clone the repository: `git clone https://git.warky.dev/wdevs/relspecgo.git`
3. Create a feature branch: `git checkout -b feature/your-feature-name`
4. Commit your changes and push the branch
5. Open a pull request with a description of the new feature or fix

For questions or discussion, join the Discord: [discord.gg/74rcTujp25](https://discord.gg/74rcTujp25) — `warkyhein`

## Links

- [Todo](./TODO.md)
- [AI Use Policy](./AI_USE.md)
- [License](LICENSE) — Apache 2.0 · Copyright 2025 Warky Devs
