# RelSpec

[![Release](https://img.shields.io/gitea/v/release/wdevs/relspecgo?gitea_url=https://git.warky.dev&label=release)](https://git.warky.dev/wdevs/relspecgo/releases/latest)
[![CI](https://git.warky.dev/wdevs/relspecgo/actions/workflows/ci.yml/badge.svg)](https://git.warky.dev/wdevs/relspecgo/actions/workflows/ci.yml)
[![Integration Tests](https://git.warky.dev/wdevs/relspecgo/actions/workflows/integration-tests.yml/badge.svg)](https://git.warky.dev/wdevs/relspecgo/actions/workflows/integration-tests.yml)
[![Go Version](https://img.shields.io/badge/go-1.24.0-blue.svg)](https://go.dev/dl/)
[![License](https://img.shields.io/badge/license-Apache%202.0-blue.svg)](LICENSE)

> Bidirectional database schema conversion, validation, and templating tool.

![RelSpec](./assets/image/relspec1_512.jpg)

## Install

```bash
go install -v git.warky.dev/wdevs/relspecgo/cmd/relspec@latest
```

## Supported Formats

| Direction | Formats |
|-----------|---------|
| **Readers** | `bun` `dbml` `dctx` `drawdb` `drizzle` `gorm` `graphql` `json` `mssql` `pgsql` `prisma` `sqldir` `sqlite` `typeorm` `yaml` |
| **Writers** | `bun` `dbml` `dctx` `drawdb` `drizzle` `gorm` `graphql` `json` `mssql` `pgsql` `prisma` `sqlexec` `sqlite` `template` `typeorm` `yaml` |

See [docs/FORMAT_EXAMPLES.md](docs/FORMAT_EXAMPLES.md) for usage examples covering every format.

## Commands

### `convert` — Schema conversion

```bash
# PostgreSQL → GORM models
relspec convert --from pgsql --from-conn "postgres://user:pass@localhost/mydb" \
                --to gorm --to-path models/ --package models

# DBML → PostgreSQL DDL
relspec convert --from dbml --from-path schema.dbml --to pgsql --to-path schema.sql

# PostgreSQL → SQLite (auto flattens schemas)
relspec convert --from pgsql --from-conn "postgres://..." --to sqlite --to-path schema.sql

# Multiple input files merged
relspec convert --from json --from-list "a.json,b.json" --to yaml --to-path merged.yaml

# Watch mode: regenerate whenever the source file(s) change (Ctrl-C to stop)
relspec convert --from dbml --from-path schema.dbml --to gorm --to-path models/ --package models --watch
```

`--watch` works with `--from-path` and `--from-list` (not live database
connections or `--dry-run`). Source files are polled every `--watch-interval`
(default 500ms), a directory source is watched recursively, and the output path
is ignored so generating into the source tree does not loop. Conversion errors
are printed and watching continues.

### `batch` — Convert many inputs in one run

Converts each input independently (one output per input, unlike `--from-list`
which merges). `--input` takes paths or globs; outputs go to `--to-dir`.
Use `--keep-going` to continue past failures (exit is still non-zero) and
`--dry-run` to validate without writing. For named workflows see `relspec job run`.

```bash
relspec batch --from dbml --input "schemas/*.dbml" --to json --to-dir out/
```

PostgreSQL connections opened by relspec set `application_name` by default to
`relspecgo/<version>` (with component suffixes internally, e.g. readers/writers).
If you need a custom value, provide `application_name` explicitly in the connection
string query parameters.

### `merge` — Additive schema merge (never modifies existing items)

```bash
# Merge two JSON schemas
relspec merge --target json --target-path base.json \
              --source json --source-path additions.json \
              --output json --output-path merged.json

# Merge PostgreSQL into JSON, skipping tables
relspec merge --target json --target-path current.json \
              --source pgsql --source-conn "postgres://user:pass@localhost/db" \
              --output json --output-path updated.json \
              --skip-tables "audit_log,temp_tables"
```

Skip flags: `--skip-relations` `--skip-views` `--skip-domains` `--skip-enums` `--skip-sequences`

### `inspect` — Schema validation / linting

```bash
# Validate PostgreSQL database
relspec inspect --from pgsql --from-conn "postgres://user:pass@localhost/mydb"

# Validate DBML with custom rules
relspec inspect --from dbml --from-path schema.dbml --rules .relspec-rules.yaml

# JSON report output
relspec inspect --from json --from-path db.json --output-format json --output report.json

# Filter to specific schema
relspec inspect --from pgsql --from-conn "..." --schema public
```

Rules: naming conventions, PK/FK standards, missing indexes, reserved keywords, circular dependencies.

### `diff` — Schema comparison

```bash
relspec diff --from pgsql --from-conn "postgres://localhost/db1" \
             --to pgsql --to-conn "postgres://localhost/db2"
```

### `templ` — Custom template rendering

```bash
# Render database schema to Markdown docs
relspec templ --from pgsql --from-conn "postgres://user:pass@localhost/db" \
              --template docs.tmpl --output schema-docs.md

# One TypeScript file per table
relspec templ --from dbml --from-path schema.dbml \
              --template ts-model.tmpl --mode table \
              --output ./models/ --filename-pattern "{{.Name | toCamelCase}}.ts"
```

Modes: `database` (default) · `schema` · `table` · `script`

Template functions: string utils (`toCamelCase`, `toSnakeCase`, `pluralize`, …), type converters (`sqlToGo`, `sqlToTypeScript`, …), filters, loop helpers, safe access.

### `job` — Declarative job files

Run named jobs from a `relspec.yml` manifest instead of repeating long command lines.

```bash
# List jobs discovered in ./relspec.yml and ./relspec.<name>.yml (deterministic)
relspec job list

# Validate and print the plan without running anything
relspec job run build-schema --plan

# Run a job (and its declared dependencies)
relspec job run build-schema
```

```yaml
# relspec.yml
version: 1
jobs:
  build-schema:
    command: convert            # closed allow-list: convert | merge | split | scripts-list | scripts-exec | templ | inspect | diff
    description: Merge the DBML sources and emit PostgreSQL DDL
    inputs:
      - path: schema/core.dbml
        format: dbml
      - path: schema/tenant.dbml
        format: dbml
    output:
      format: pgsql
      path: build/schema.sql
      overwrite: true
    options:
      flatten_schema: false
    logfile: .relspec/log/build-schema.log
```

The job system is **not** a shell: `command` is a fixed enum, every path is
resolved relative to the job file and may not escape it, and remote database
credentials are referenced by environment-variable name (`conn_env:`) and
redacted from logs. The whole plan — unknown commands/formats, duplicate job
names, missing inputs, path traversal, dependency cycles — is validated before
any job runs. Path-like fields also support `${NAME}` environment-variable
references, which are expanded and safety-checked during pre-flight. See
[docs/JOB_FILES.md](docs/JOB_FILES.md).

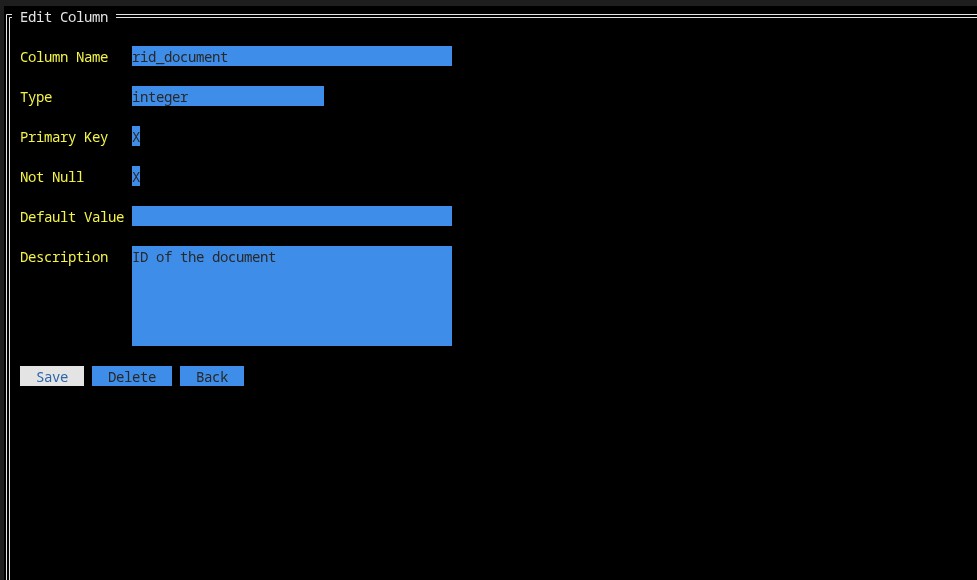

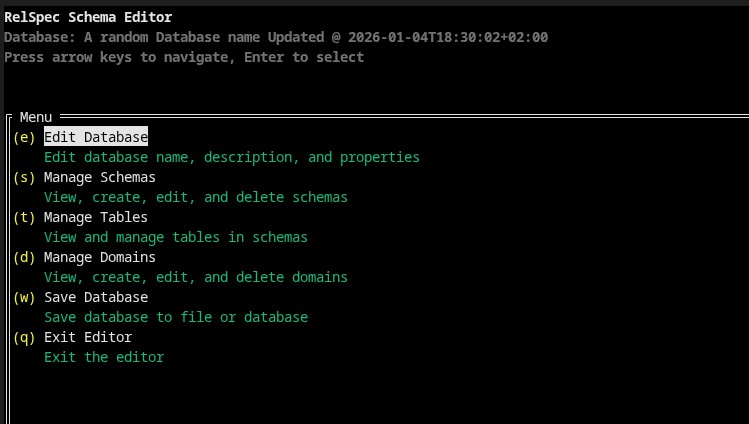

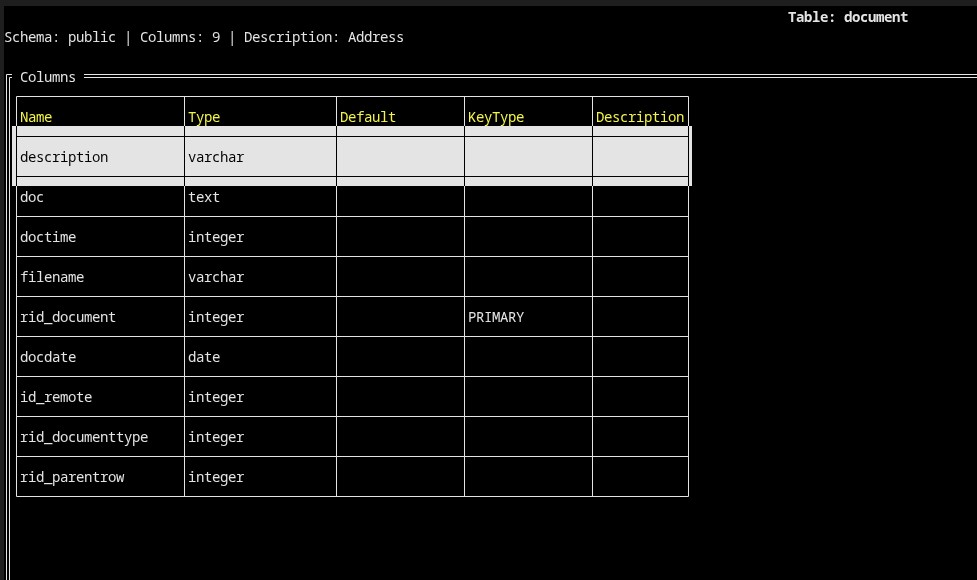

### `edit` — Interactive TUI editor

```bash
# Edit DBML schema interactively
relspec edit --from dbml --from-path schema.dbml --to dbml --to-path schema.dbml

# Edit live PostgreSQL database
relspec edit --from pgsql --from-conn "postgres://user:pass@localhost/mydb" \
             --to pgsql --to-conn "postgres://user:pass@localhost/mydb"
```

<p align="center">
<img src="./assets/image/screenshots/main_screen.jpg">
</p>
<p align="center">
<img src="./assets/image/screenshots/table_view.jpg">
</p>
<p align="center">
<img src="./assets/image/screenshots/edit_column.jpg">
</p>

## Development

**Prerequisites:** Go 1.24.0+

```bash
make build     # → build/relspec
make test      # race detection + coverage
make lint      # requires golangci-lint
make coverage  # → coverage.html
make install   # → $GOPATH/bin
```

## Project Structure

```
cmd/relspec/          CLI commands
pkg/readers/          Input format readers
pkg/writers/          Output format writers
pkg/inspector/        Schema validation
pkg/diff/             Schema comparison
pkg/merge/            Schema merging
pkg/models/           Internal data models
pkg/transform/        Transformation logic
pkg/pgsql/            PostgreSQL utilities
pkg/sqltypes/         Nullable SQL types for generated/hand-written models (see below)
```

## Nullable Types (`pkg/sqltypes`)

The `bun` and `gorm` writers can generate model structs using
[`pkg/sqltypes`](./pkg/sqltypes/README.md) — nullable types (`SqlString`,
`SqlInt32`, `SqlTimeStamp`, `SqlStringArray`, …) that implement
`database/sql.Scanner`, `driver.Valuer`, and JSON/YAML/XML marshalling in one
type, selected via `--types sqltypes`. See the
[`pkg/sqltypes` README](./pkg/sqltypes/README.md) for the full type
reference, or the [`bun`](./pkg/writers/bun/README.md) /
[`gorm`](./pkg/writers/gorm/README.md) writer docs for the `--types` flag
(`sqltypes`, `stdlib`, or `baselib`). PostgreSQL array columns are the one
exception: the `bun` writer always generates native Go slices (`[]string`,
`[]int32`, …) with an explicit `array` bun tag, regardless of `--types` —
see [`bun`'s `--array-nullable`](./pkg/writers/bun/README.md#nullablearrays)
flag for nullable-array handling. The `SqlXxxArray` wrapper types remain
available in `pkg/sqltypes` and are still used by the `gorm` writer.

#### Custom type mapping

Override the built-in SQL → Go mapping of the `bun` and `gorm` writers with the
repeatable `--type-map sqltype=gotype` flag:

```bash
relspec convert --from pgsql --from-conn "$DSN" --to gorm --to-path models.go \
  --type-map uuid=string --type-map jsonb=json.RawMessage
```

SQL type names are matched case-insensitively on the base type (modifiers such
as `(10,2)` are ignored; aliases like `int4` resolve to `integer`). NOT NULL
columns use the Go type verbatim, nullable columns get a `*` prefix (unless the
type is already a pointer, slice, map or `any`), and arrays become `[]gotype`.
Unmapped types keep their defaults. The flag does not add imports: use types
that need none, or add the import afterwards (e.g. with `goimports`).

## Contributing

1. Register or sign in with GitHub at [git.warky.dev](https://git.warky.dev)
2. Clone the repository: `git clone https://git.warky.dev/wdevs/relspecgo.git`
3. Create a feature branch: `git checkout -b feature/your-feature-name`
4. Commit your changes and push the branch
5. Open a pull request with a description of the new feature or fix

For questions or discussion, join the Discord: [discord.gg/74rcTujp25](https://discord.gg/74rcTujp25) — `warkyhein`

## Links

- [Todo](./TODO.md)
- [AI Use Policy](./AI_USE.md)
- [License](LICENSE) — Apache 2.0 · Copyright 2025 Warky Devs
